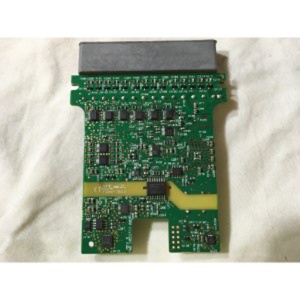

PCB CAM-14 V2

2028778-003
2028778-001 900995-004
Diagnostic ECG
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Sorry, this item is not in stock with the quantity you selected. Please update the quantity to continue.

Features

    • Rigidez y flexibilidad
    • Buen diseño estructural
    • Mayor fiabilidad y eficiencia
    • Gran mantenibilidad
    • RoHS

Product Overview

El ensamblaje de placa de circuito impreso (PCB) cam-14 HD se utiliza en máquinas de electrocardiograma de diagnóstico (ECG). El módulo de adquisición cam-14 está diseñado para adquirir la señal ECG analógica, digitalizarla y transmitir la señal a una unidad host. La PCB (placa de circuito impreso) se ensambla en el cam-14 HD. El circuito está diseñado para proteger la unidad host contra los efectos de la descarga del desfibrilador cardíaco para garantizar la recuperación. El módulo cam-HD tiene 3 PARTEs de software que deben programarse para la memoria flash durante el ensamblaje de la placa. Dos de estas PARTEs están programadas en el atmel at45DB041 dataflash (u113), y la tercera en la memoria flash en chip del chip at tiny2313 (u121). El PCB consta de ic, diodos, resistencias, conectores, condensadores, cuentas de ferrita, LED y trANSIstores. El PCB se monta con los tornillos provistos. Los cables están conectados a la PCB principal. Los sujetadores se utilizan como conexiones a paneles de tierra en PCB. La entrada de señal ECG está aislada y a prueba de desfibrilación solo en combinación con CAM14. Se está utilizando en el caso, monitor ms Carescape ™ b850, Cardiosoft, ul viVID s6, Stress other, ul voluson p8, carros premium otros, ct sytec 8000 1-slice, MAC 5500 HD, arc Aisys Cardiosoft, ct cte 1 - slice , suministros y otras aplicaciones.

Equivalent Item(s):

We have the following equivalent items available for you.These are compatible replacements items.Those parts without a hyperlink are listed for reference only and are not available for purchase online.For additional information,please contact customer service

Equivalent Item(s)Item Details
2028778-001 PCB ASSY CAM14 V2
900995-004

900995-004
