Keyboard - Black Mac Lab/Cath Lab Pre-Assembly - English
2054858-003 | |
ECG de diagnóstico | |
Invasive Cardiology | |
GE Sistemas Médicos de México S.A. de C.V | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Características
- 101 keys
- Red key for emergency save
- Cable type
- PS/2 type
Descripción del producto

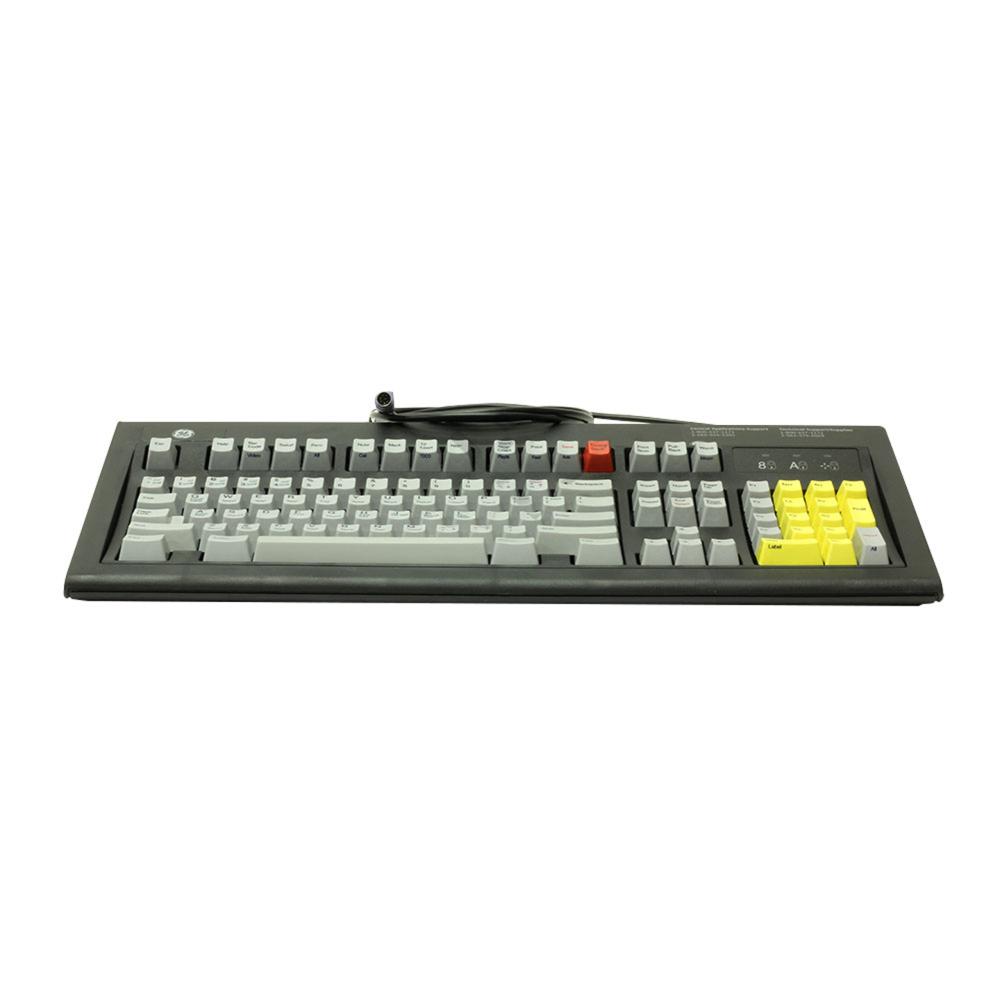

The Keyboard - Black Mac Lab/Cath Lab Pre-Assembly is used in Diagnostic ECG. It consist of 12 yellow keys for comment, ART, AO, LV, LA, PV, PA, RV, PCW, RA, VC, VEN and SP. The F12 key is highlighted in red color for emergency save. The keyboard has 102 keys and is a PS/2 cable type keyboard. The barcode scanner cable must not be connected to the keyboard PS/2 connector when system is powered on. This would cause the system to lock up after the first scan. If this happens, the barcode scanner cable must be replaced. The keyboard LEDs will turn on at Power On and turn off just prior to the floppy disk drive’s LED turning on. These LEDs indicate that the PC/AT system (EPC-9) is functioning properly. The keyboard connector is hot-pluggable. Any standard keyboard can be plugged in without powering down the system or causing keyboard errors. It is used in ARC Aisys, HCS-IT ComboLab IT, MS PDM, HCS-IT CardioLab IT 6.9, Evaluated/Not Applicable XI (Invasive), XV Innova IGS 620 and ComboLab Upgrades.
Características adicionales
- Grounded
