Pressure Regulator 902511

2163549
PET Radiopharmacy
PETtrace 800
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Open Type of Construction, Discharge to Atmosphere
  • Valve Seat with Elastic Seal
  • Easing with Knurled Screw
  • Wide Operating Temperature Range

Descripción del producto

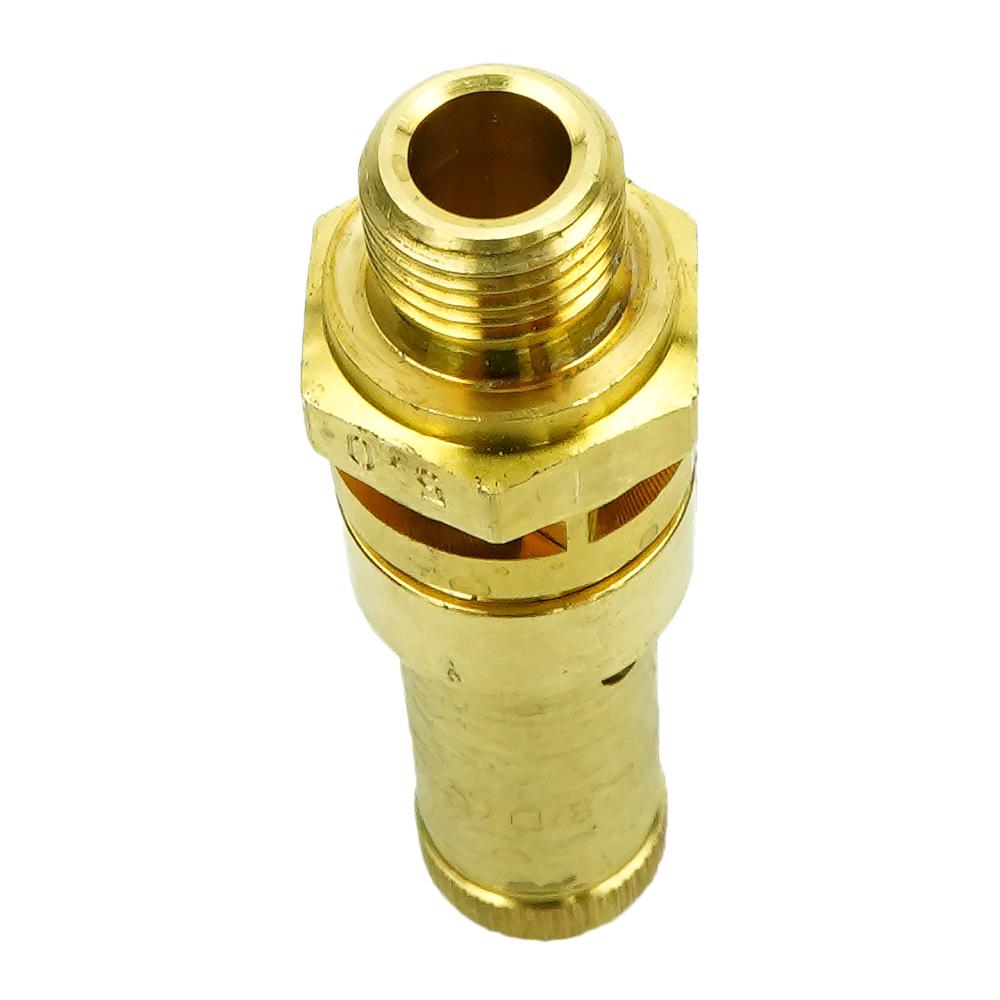

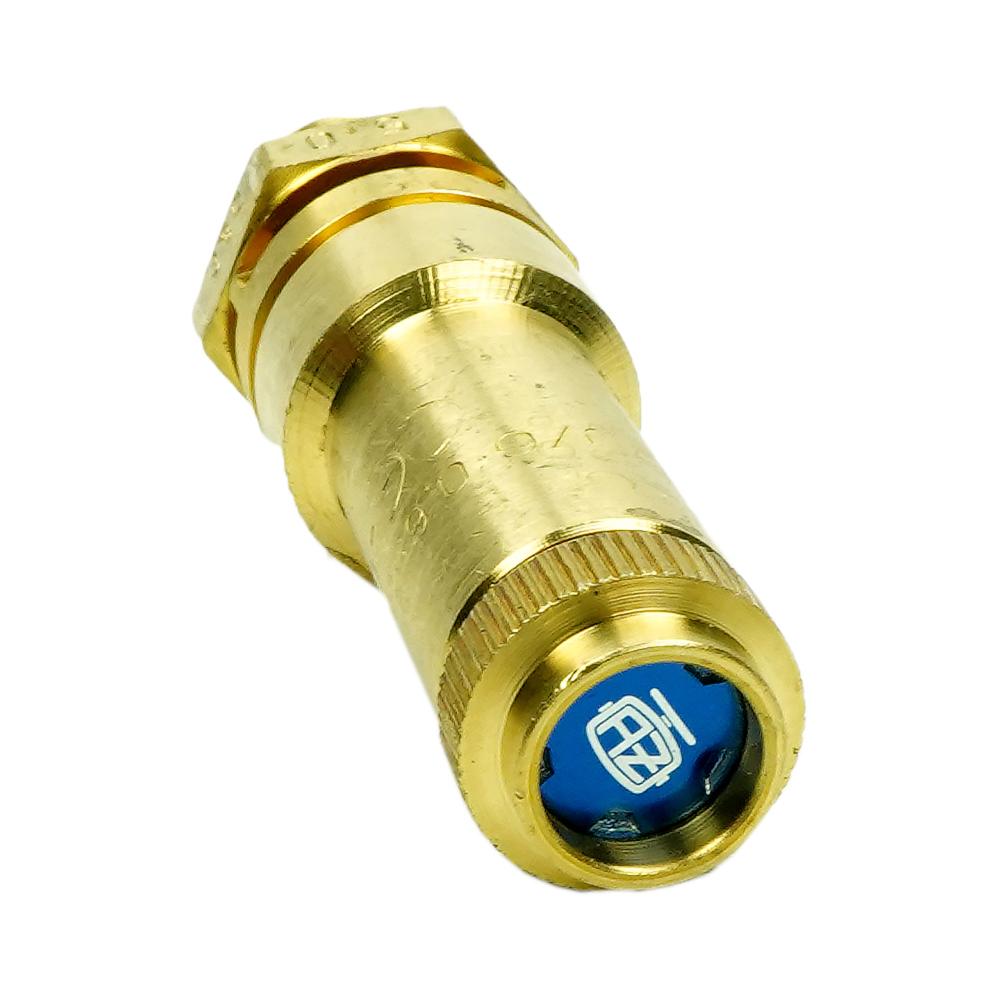

This 73 mm long Pressure Regulator is also known as a Safety Valve. It is a type of valve that automatically starts when pressure on the inlet side of the valve increases to a predetermined pressure (5.0 Bar) which displaces the spring loaded valve disc and discharges the steam or gas pressure. The valve closes when pressure decreases to the prescribed value. This valve has an open type construction and discharges pressure into the atmosphere. The valve comes with a 1/4 inch BSPT thread and hexagonal drive for easy installation. The housing of the valve is made up of brass which enhances its resistance against corrosion. This assembly is designed per DN 8 standards and can operate up to 180 Degrees C. The Pressure Regulator 902511 is compatible with assemblies of GE's PET Cylotron systems.

  • Características adicionales

    • Connection with Threaded Pin
    • Safety Valves are already Sealed (Lead Disc) and adjusted
    • Good Corrosion Resistance
