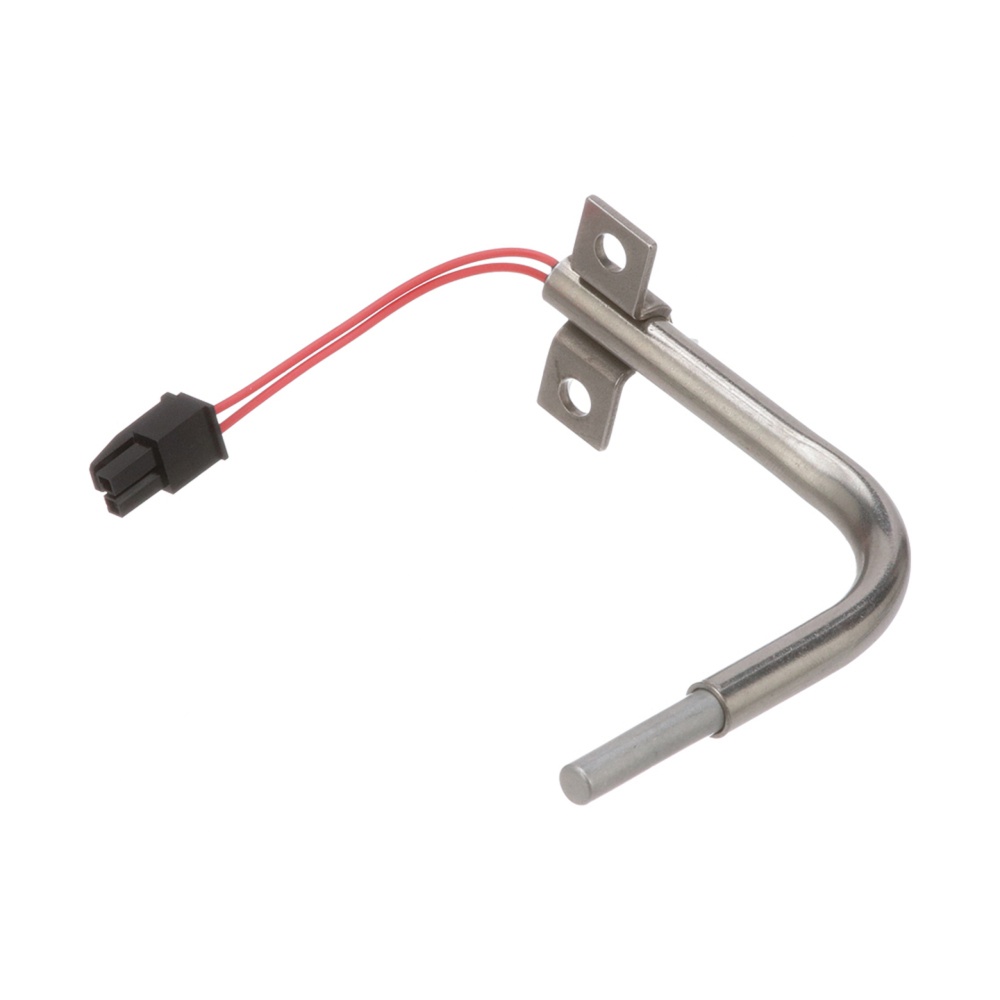

Thermistor Probe 5268699

5268699
PET/CT
Discovery IQ
GE Sistemas Médicos de México S.A. de C.V
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Very fast response time
  • Coated Chip NTC (Negative Temperature Coefficient) Thermistor
  • 10,000 ohm Resistance @ 25°C
  • Accuracy of ±0.2 °C from 0°C to 70°C

Descripción del producto

This thermistor probe assembly consist of NTC (Negative Temperature Coefficient) thermistor and 26 Gauge twisted pair 40 mm long cable with 2 pin connector. The Mate-N-Lock type connectors makes it easy to install. The cable and thermistor are potted in housing with thermally conductive epoxy. The type of thermistor is curve matched, which has very fast and accurate response. The thermistor element is electrically isolated from the housing. This thermistor is designed to perform accurately over a wide temperature range between 0°C to 70°C with accuracy level of ±0.2°C. This thermistor assembly is interchangeable and allow direct replacement without the need for recalibration. This assembly can be used in GE's Optima 660, VCT, Discovery 750 HD, Lightspeed Ultra, Lightspeed Plus, Lightspeed Qxi and Discovery ST Computed tomography (CT) systems.

  • Características adicionales

    • Thermally conductive epoxy coating
    • 26 AWG Stranded Cable
    • Easy to Connect 2 pin connector
    • RoHS compliant

    Productos compatibles

    Optima 660

    Optima 660

    Discovery 750 HD

    Discovery 750 HD

    Lightspeed Ultra

    Lightspeed Ultra

    Lightspeed Plus

    Lightspeed Plus

    Lightspeed QXi

    Lightspeed QXi

    Discovery ST

    Discovery ST

    Discovery ST (64 Slice)

    Discovery ST (64 Slice)

    Discovery ST (128 Slice)

    Discovery ST (128 Slice)
